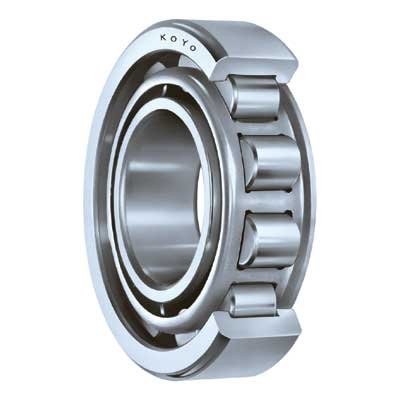

Agricultural Machinery NJ2205V Cylindrical roller bearing 25*52*18mm
Description:
1. Seal form: open style, Z, ZZ, RS, 2RS, 2RZ
2. Bearing stop ring: N,NR
3. Class of precision: ABEC-1, ABEC-3, ABEC-5, ABEC-7
4. Vibration rank: V1, V2, V3, V4
5. Noise rank: Z1,Z2,Z3,Z4
6. Internal elimination code: C0, C2, C3, C4, C5
7. Bearing material: bearing steel (9Cr18), stainless steel(AISI440C, AISI304, AISI316), ceramics
Specifications
roller bearing nj2205v
1,Bearing steel material quality
2,Low noise and high precison,
3,long life
Products Details:
| P/N | NJ2205V Bearings |
| Brand | Koyo, NSK,Timken, FAG,EASE,IKO |
| Size | 25*52*18 mm |
| Precision | ABEC-1 |
| Type | Cam Followers |
| Lubrication | Grease |
| Material | Chrome Steel |
| Package | Plastic Bag and Box |
| Name | nj2205 Bearings |
| Brand | Koyo, NSK,Timken, FAG,EASE,IKO |
| Precision | P4, P5 |
| Quality standard | ISO9001:2000 standard |
| Service | OEM service |
| Delivery date | Normally ready goods and stock |
| Payment terms |
1: 100% T/T in advance
2: Western Union
|
| Application | automotive, rolling mill, mining, metallurgical, plastic machinery,etc. |
| Package | a. According to customer's requirements.
b. Original TIMKEN NSK NTN KOYO IKO good quality packaging.
c. Laser mark on the bearing.
d. Bearing wrapped by vacuum packaging.
e. The outer is color polybag + box + carton, industrial standard
packaging. |
| Bearing NO. | NJ2205V |
| Units | mm |
| Bearing Type | NJ |
| Bore Dia (d) | 25.0000 |
| Outer Dia (D) | 52.0000 |
| Width (B) | 18.0000 |
| Radius (min) (rs) | 1.000 |
| Dynamic Load Rating (Cr) | 34,600 |
| Static Load Rating (Cor) | 34,300 |
| Max Speed (Grease) | 11 |
| Max Speed (Oil) | 14 |
| Max. Shaft Shoulder Dia. Inner (Li) | 31.5 |
| Min. Housing Shoulder Dia., Outer (Lo) | 46.5 |
| Weight (g) | 166.00 |
| Precision | RBEC 1 |
| Standard Clearance | C0 |
| Material | 52100 Chrome steel, or equivalent |
Other Items:
Radial cylindrical roller bearings, due to a linear contact between the rings of the bearing and the rollers, offer a considerable amount of load. Also, this type is suitable for applications at high speed.
N2..,N3..,N32..,N33..,N34..,NJ22..,NJ23..,NU10..,NU2..,NU3..,NU4..,NU22..,NU23..,NUP2..,NUP22..,NUP23...,NUP3..,
Application:
Cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single, double and multi-row full complement bearings (without a cage) and split bearings complete the standard assortment provided here.
Packaging & Shipping:
| Package | Plastic Bag for bearings, and carton package outside |
| Shipping | Express,air shipment, and sea shipment are available |
| Service | OEM Service, and can print your onw logo after authorization
|
